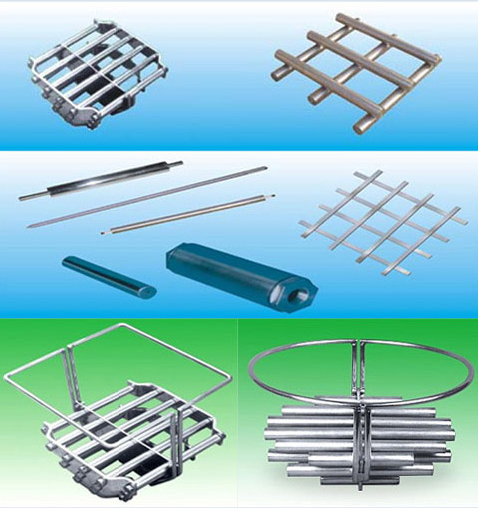

磁性篩選器是由強力磁力棒組合在固定架上構成，當含鐵的物質通過時，受到強磁的吸引，將含鐵的物質牢固地吸附在管壁上，以保證設備完好和產品安全。我們生產的磁性篩選棒，表磁最高可達12000高斯，同時也可以根據客戶需求搭製各式磁力架

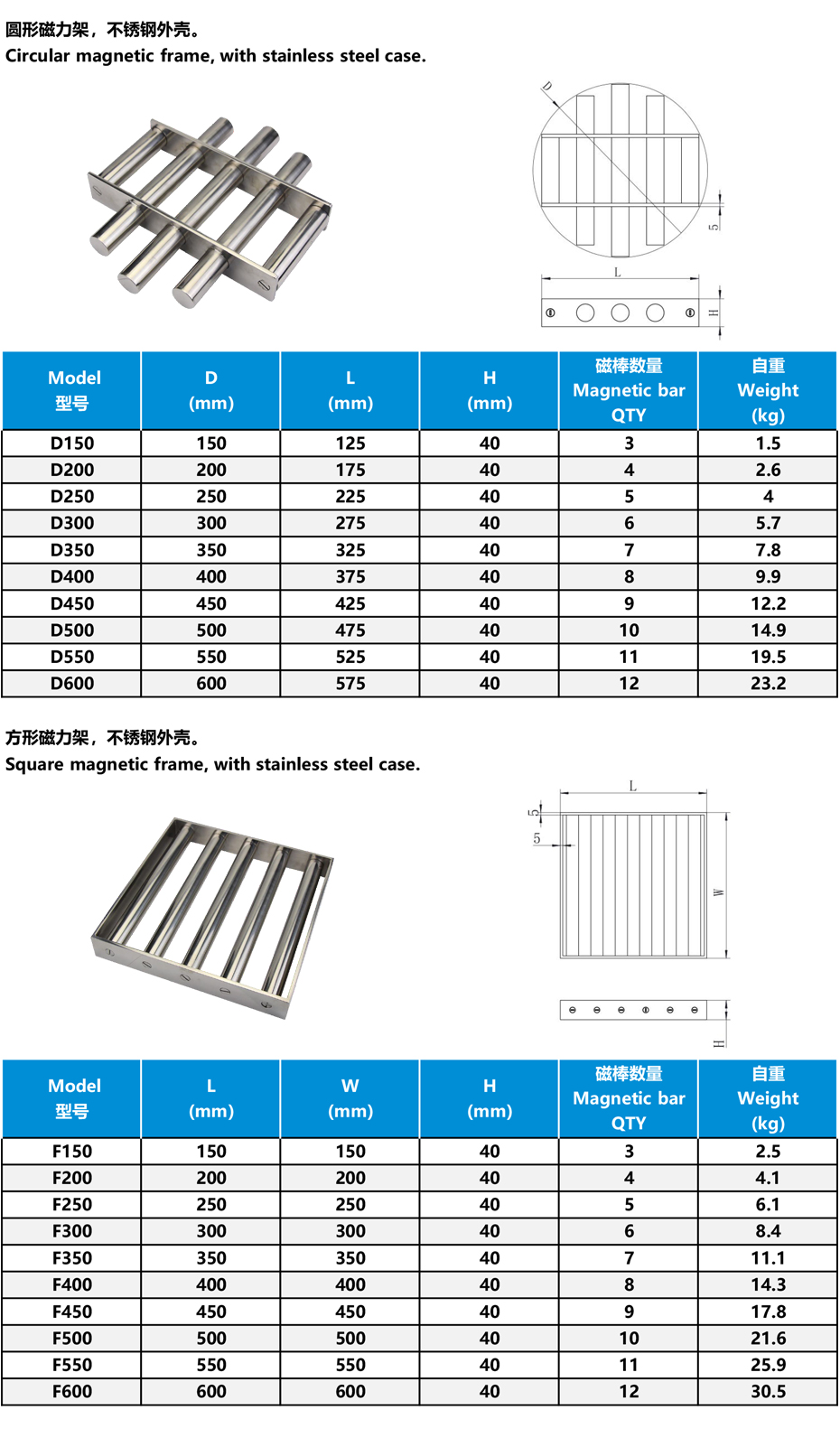

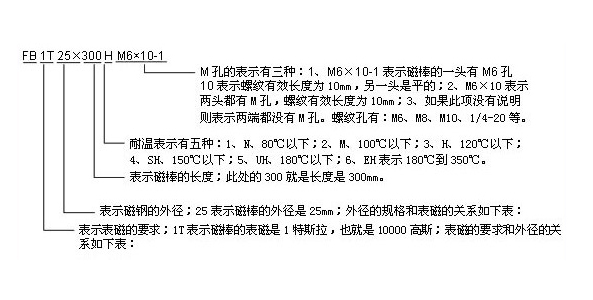

磁棒的表示方法 (未注不鏽鋼材料為SUS304)磁棒	表磁	直徑	長度	耐溫	M孔
FB	1.2T	25x	200	M	M8X10
Filter Bar	Surface Gauss	Diameter	Length	Temperature	Screw hole Two end

舉例說明：

管徑、表磁和耐溫的關係表：

	0.25T	0.5T	0.7T	0.9T	1T	1.1T	1.2T
Φ19(0.75")	EH	EH	EH	H	M	-	-
Φ22(0.85")	EH	EH	EH	H	M	N	-
Φ25(1.00")	EH	EH	EH	SH	H	M	N
Φ32(1.25")	EH	EH	EH	SH	H	M	N
Φ38(1.50")	EH	EH	EH	UH	SH	H	M
Φ50(1.75")	EH	EH	EH	UH	SH	H	M
Φ76(3.00")	EH	EH	EH	UH	UH	SH	H
Φ100(4.00")	EH	EH	EH	UH	UH	SH	H

General Description

Plate magnet are widely used for removing Tramp lron such as Bolts, Nuts, Bits of Wire, Nail and other casual contamination from free flowing material pass over or under the magnet plate, tramp metal is pulled to the magnet's working surface and held in place until removed. Plate magnet can be designed in a wide of models, configurations and sizes to meet with specific operation and plant conditions. They are usually carried in angled chutes, ducts, spouts or suspended above conbeyors, screens and feed trays to protect against occasional damage to the plant caused by bits of iron.

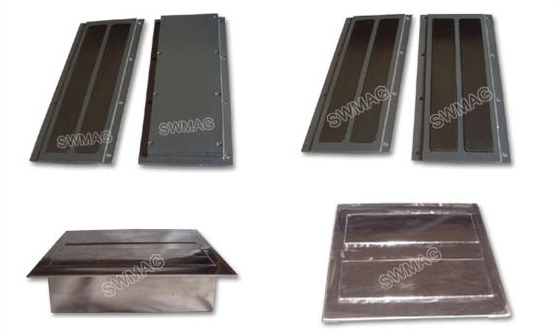

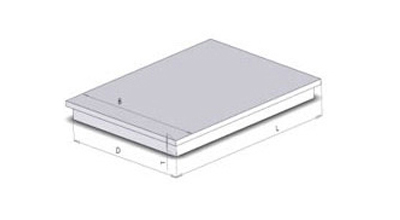

Type	B	T	D	Suspension Distanse
SWFMP-FF60	250	51	175	60
SWFMP-FF120	300	76	225	120
SWFMP-FF150	450	111	360	150
SWNMP-FF60	190	36	125	60
SWNMP-FF120	250	46	175	120
SWNMP-FF150	330	56	240	150

Noted：

Swfmp is made of Ferrite Magnet. SWNMP is made of Neodymium Magnet.

2、Exposed Pole (EP)

Exposed Pole(EP)Plate Magnets are engine ering to deliver hight performance tramp metal separation in low volume applicaions. These applications are for below-the-flow installations where the product flows over thed magnet face.

Specification：

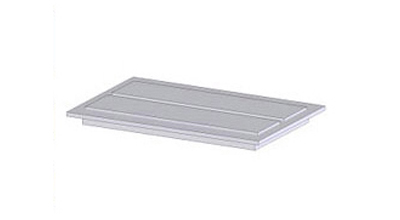

Type	B	T	D	Suspension Distanse
SWFMP-EP60	250	51	175	60
SWFMP-EP120	300	76	225	120
SWFMP-EP150	450	111	360	150
SWNMP-EP60	190	36	125	60
SWFMP-EP60	250	46	175	120
SWFMP-EP150	330	56	240	150

Noted：

Swfmp is made of Ferrite Magnet. SWNMP is made of Neodymium Magnet.

3、Spout Magnet(SM)

Diverter Spout provide maximum ferrous tramp metal separation in high volume chute applications where wash-off can be a problem.

Specification：

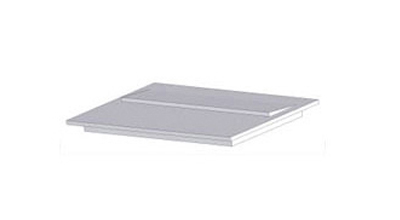

Type	B	T	D	Suspension Distanse
SWMP-SM	250	51	175	60
SWMP-SM	300	76	225	120
SWMP-SM	450	111	360	150
SWMP-SM	190	36	125	60
SWMP-SM	250	46	175	120
SWMP-SM	330	56	240	150

Noted：

"B"= overall width
"D"= width of the magnetic surface
"T"= thickness
"L"= overall lenght

Length can be choosed: 150, 200, 250, 300, 350, 400, 450, 500, 550, 600 or give us your length required for qu ataion.

4、Suspended Plate Magnet

Suspended Magnets are designed for high separation performance in over-the-belt conve your applications. These heavy duty perm anent magnets incorpotationg all welded construction are particularly effective in removing tramp metal in high volume applictions.
Supplied with tapped mounting holes in the backing plate and four eye bolts, these suspended magnets can be rigidly mounted with threaded bolts or hung by eye bolts using cable or chain systems.

Specification：

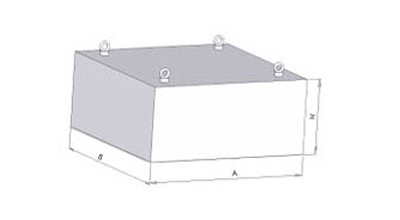

Type	H	A	B	Suspension Distanse
SWMP-SPM18	180	400 / 500	400 / 500	120
SWMP-SPM25	250	600 / 700	600 / 700	120
SWMP-SPM35	350	800 / 900	800 / 900	150
SWMP-SPM40	400	1000 / 1000 / 1200	1100 / 1100 / 1200	160

Noted：

"B"= overall length
"D"= overall width
"T" and "H"= overall thickness

Suspension distance me asurements are the maximum recommended. All dimensions approximate.

磁性篩選器

磁力棒 Magnetic Bar

舉例說明：

管徑、表磁和耐溫的關係表：

磁力板 Magnetic Plate

General Description

Noted：

2、Exposed Pole (EP)

Specification：

Noted：

3、Spout Magnet(SM)

Specification：

Noted：

4、Suspended Plate Magnet

Specification：

Noted：
